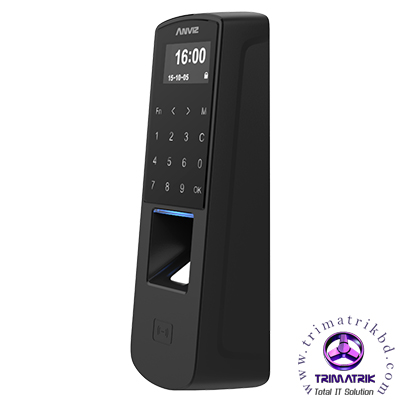

• Touch the bright background number keys• High precision OLED displays• Standard EM the RFID card reader module, optional Mifare module• Optional waterproof cover, realize outdoor use, IP53 Anviz P7 PoE-Touch Fingerprint and RFID Access Control P7 is a new generation access control device of Anviz. The P7 adopts touch activation technologies in fingerprint sensor and keypad easy for user operation. As an access control, which are designed with PoE communication and access interface separation, make the P7 easy for Installation and cost down the labor. The powerful access control function is indispensable for P7. Relay output for door control, Wiegand output and group, time zones. Multi communications with TCP/IP, RS485 and Mini USB port. The Alarm push function will protect access control safe. Anviz P7 Bangladesh | Anviz P7 Time Attendance in Bangladesh Activation Mode Touch Scan Area 22mm*18mm Resolution 500 DPI Display 128*64 OLED Capacity Max 3,000 Users Template Max 3,000 Templates Log Capacity Max 50,000 Logs Identification Mode FP, Card, ID FP, ID PW, PW Card, FP Card Identification Time < 0.5 S Communication Interface RS485, Mini USB Slave, TCP/IP, Wiegand Out&In Card Reader Module EM RFID, Optional Mifare Workcode 6-digit Work Code Short Message 50 Relay Relay Output (COM, NO, NC or Direct Lock Control) Door Open Sensor Yes Tamper Alarm Yes PoE Standard IEEE802.3af and IEEE802.3at Operating Voltage DC 12V Size 54(w)*170(h)*41(d)mm Temperature -25℃~70℃ Ingress Protection Rate IP53 (Optional Waterproof Cover)
